技術參數
| 型 號 | 生產能力 | 出料粒度 | 電機 |
| YSL2-60/120 | 2-4 | 1-5 | 42.6kw |
| YSL2-80/120 | 3-5 | 1-5 | 58.2kw |
| YSL2-80/140 | 4-6 | 1-5 | 58.6kw |
| YSL2-80/150 | 5-8 | 1-6 | 60.5kw |
| YSL2-100/150 | 6-10 | 1-8 | 72.5kw |
| YSL2-100/160 | 7-11 | 1-8 | 75.6kw |
| YSL2-100/180 | 8-12 | 1-10 | 80kw |

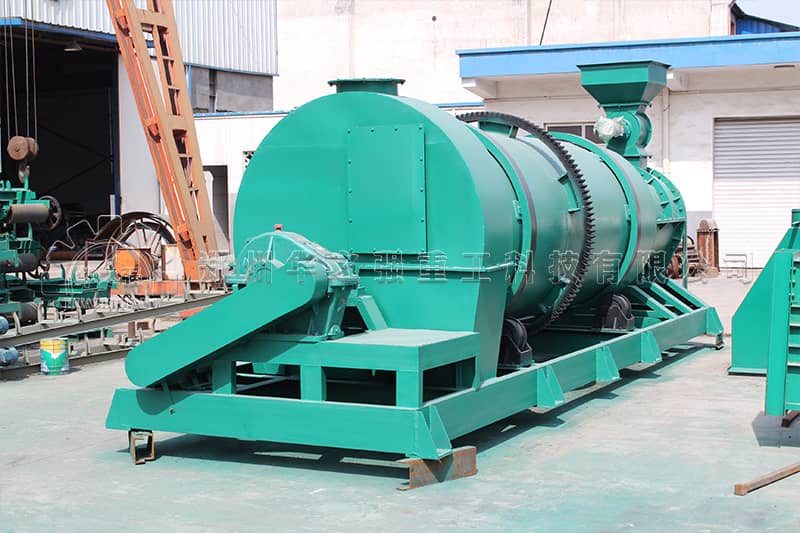

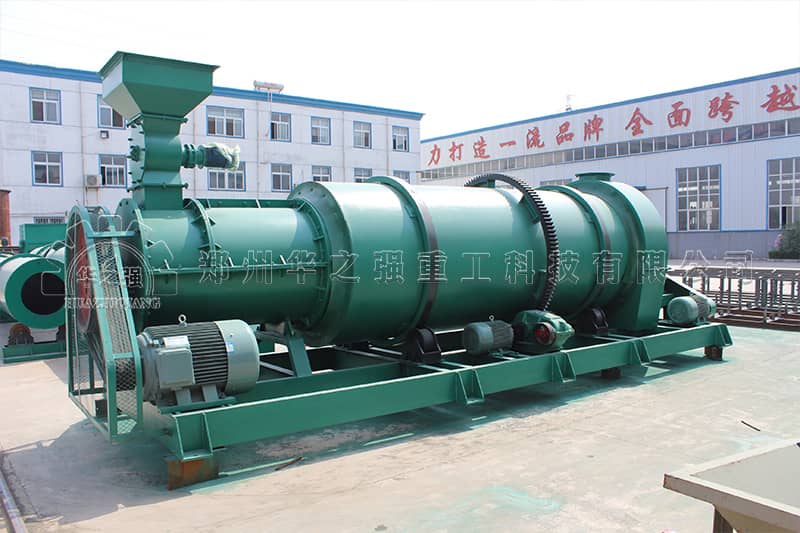

新型有機肥二合一造粒機
- 用途與特點： 新型有機肥二合一造粒機是我司新研制開發的一種組合式造粒機產品，它采用濕法連續推桿造粒新工藝設計制造，利用高速回轉的機械攪拌力及由此產生的摩擦力，使細粉...
- 咨詢熱線：186-0384-7333
-
產品詳情
新型有機肥二合一造粒機是我司新研制開發的一種組合式造粒機產品，它采用濕法連續推桿造粒新工藝設計制造，利用高速回轉的機械攪拌力及由此產生的摩擦力，使細粉狀物料在機內連續實現混合，成粒、球化、致密、拋光等過程，從而達到造粒的目的，同時具備轉股造粒機的優勢和特點，此機不但可對多種有機物進行造粒，也可生產制作復混肥顆粒，同時對使用常規設備難以成粒的粗纖維物料，如：農作物秸稈、酒糟、糠醛渣，菌渣、藥渣、動物糞便等，經發酵后就可造粒，而且對腐植酸及城市污泥等原料也能達到很好的造粒效果。
New Type of Drum-Stirring Granulator Machine
Use and Features:
New Type of Drum-Stirring Granulator Machine is a new type of granulator, is a combined type granulator machine developed by our company. It is designed and manufactured with a new technology of wet continuous push rod granulation, using the mechanical stirring force of high speed rotary and the resulting friction force, to make the powdery material continuous mixing、granulating、balling、compacting and polishing inside the machine, to achieve the purpose of material granulation. It has the the advantages and characteristics of the Drum Granulator Machine, can granulate a variety of organic materials, compound-organic fertilizer, and coarse fiber materials, which is difficult to granulate with traditional equipment, such as crop straw, distiller's grains, furfural dregs, fungus residue, drug residue, animal feces etc,can be granulate after fermentation, and can achieve good granulation effects on humic acid and municipal sludge.
用途及特點
該機由機體部分、造粒轉子部分和傳動部分組成。工作原理是物料從機體的一端進料口進入機內，通過造粒轉子進行連續推動并與機殼進行機械運動，達到造粒之目的，成品顆粒在機體的另一端被推出機外。轉子是由傳動裝置部分的電機、減速機所驅動，傳動部分、機體部分大都固定在同一機架上，這樣不但結構合理、運行平穩，而且安裝方便，是一種新時代的肥料生產設備。
